ICF LM358Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-27   Click to browse:1915Times

PRODUCT NAME

ICF LM358

FUNCTIONAL DESCRIPTION

Dual Operational Amplifier

APPLICATIONS

Operational Amplifier

GENERAL DESCRIPTION

The ICF LM358consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. operation from split power supplies is also possible so long as the difference between the two supplies is 3 volts to 32 volts. Application areas include transducer amplifier, DC gain blocks and all the conventional OP Amp circuits which now can be easily implemented in single power supply systems.

FEATURES

Internally Frequency Compensated for Unity Gain

Large DC Voltage Gain:100bB

Wide Power Supply Range:3V~32V(or±1.5~16V)

Input Common Mode Voltage Range Includes Ground

Large Output Voltage Swing:0V to VCC - 1.5V

Power Drain Suitable for Battery Operation

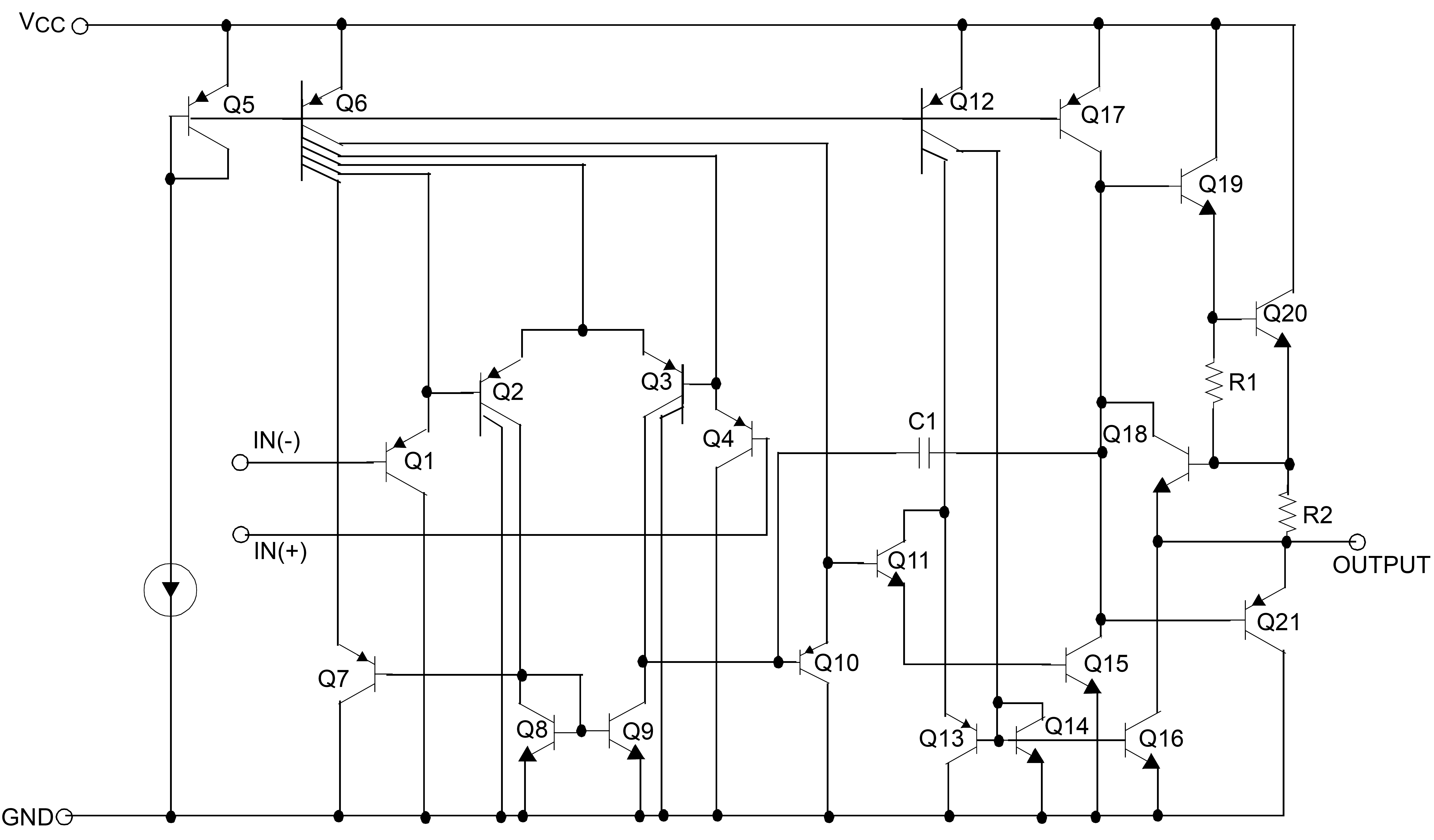

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF LM358

DIP-8

Tube

SOP-8

Tube

SOP-8

Tape & Reel
