ICF CP2262Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:1852Times

PRODUCT NAME

ICF CP2262

FUNCTIONAL DESCRIPTION

Remote Control Encoder

APPLICATIONS

Security

Remote control

GENERAL DESCRIPTION

ICF CP2262 is a remote control coding paired with ICF CP 2272 utilizing CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF or IR modulation. ICF CP2262 has a maximum of 12 bit of tri-state address pins providing up to 531,441312address codes, thereby, drastically reducing any code collision and unauthorized code scanning possibilities.

FEATURES

CMOS technology

Low power consumption

Very high noise immunity

Wide range of operating voltage: 4V ~15V

Wide working temperature range

Up to 6 data pins

Up to 12 tri-state code address pins

Single resistor oscillator

Latch or momentary output type

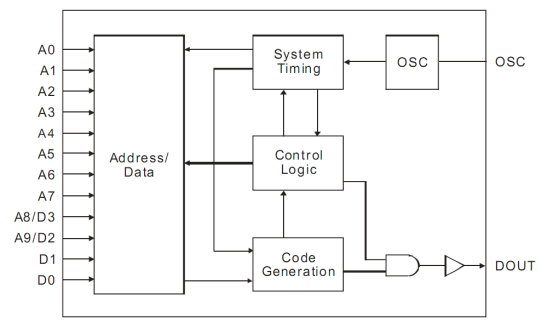

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF CP2262

DIP-18

Tube

ICF CP2262IR

ICF CP2262

SOP-18

Tube

ICF CP2262

SOP-18

Tape & Reel

ICF CP2262

SOP-20

Tube

ICF CP2262IR

ICF CP2262

SOP-20

Tape & Reel

ICF CP2262IR
