ICF M54123Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:2110Times

PRODUCT NAME

ICF M54123

FUNCTIONAL DESCRIPTION

Earth Leakage Current Detector

APPLICATIONS

High speed earth leakage circuit breaker

GENERAL DESCRIPTION

ICF M54123 is a semiconductor integrated circuit with amplifier for a high-speed earth leakage circuit breaker.

FEATURES

Good temperature characteristics of input sensitivity current

High input sensitivity (VT = 8mV Typ.)

Low external component count

High noise and surge-proof

Low power dissipation (Pd = 5mW Typ.) and may be used both as 110V and 220V.

High mounting density by SIL package with 8 pins

Wide temperature range

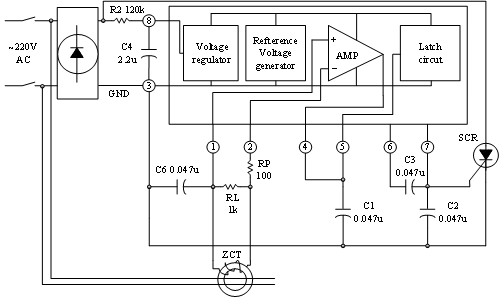

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF M54123

DIP-8

Tube

SOP-8

Tube

SOP-8

Tape & Reel
