ICF TCA785Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:1918Times

PRODUCT NAME

ICF TCA785

FUNCTIONAL DESCRIPTION

Phase Control IC

APPLICATIONS

Converter circuits,

AC controllers

Three-phase current controllers

GENERAL DESCRIPTION

ICF TCA785 is intended to control thyristors, triacs, and transistors. The trigger pulses

can be shifted within a phase angle between 0 ° and 180 °.

FEATURES

Reliable recognition of zero passage

Large application scope

May be used as zero point switch

LSL compatible

Three-phase operation possible (3 ICs)

Output current 250 mA

Large ramp current range

Wide temperature range

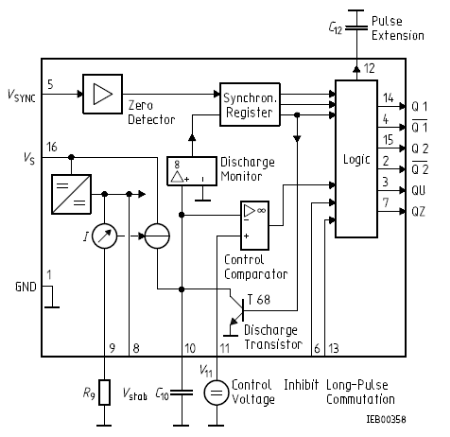

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF TCA785

DIP-16

Tube

SOP-16

Tube

SOP-16

Tape & Reel
