ICF CP2331Hangzhou Boon Electronics Co., Ltd. Release time：2018-12-28 Click to browse：3165Times
|
PRODUCT NAME
|
|
ICF CP2331
|
|
FUNCTIONAL DESCRIPTION
|
|
Buzzer Drive Special Circuit
|
|
APPLICATIONS
|
|
Buzzer Drive Special Circuit
Timer
|
|
GENERAL DESCRIPTION
|
|
The ICF CP2331 is the driving circuit of piezoelectric ceramic buzzer. It is an analog integrated circuit that combines oscillation signal. Use external oscillation capacitors and charging resistors to determine the frequency.
|
|
FEATURES
|
|
Working voltage 4V~15V
The oscillation frequency can be adjusted by changing the externai capacitance and resistance
The oscillation frequency has a good stability of 0.1%/℃
|
|

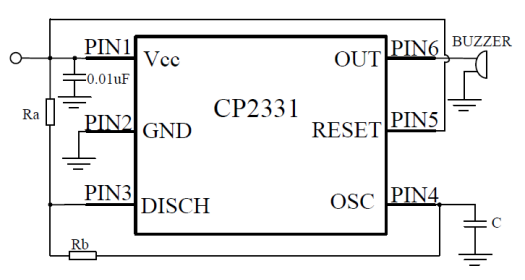

BLOCK DIAGRAM
|
|
|
|
ORDERING INFORMATION
|
|
Product model
|
Package type
|
|
ICF CP2331
|
SOT-23-6L Tape&Reel
|
|
