ICF LM339Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-27   Click to browse:1981Times

PRODUCT NAME

ICF LM339

FUNCTIONAL DESCRIPTION

Quad Comparators

APPLICATIONS

Comparators

GENERAL DESCRIPTION

The ICF LM339 series consists of four independent precision voltage comparators. These were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

FEATURES

Wide supply voltage range:Series 3 to 30 VDC or±1.5 to±15 VDC

Low input offset current± 2.3nA

Offset voltage±1.4mV

Low input biasing current:25nA

Low output saturation voltage:100mV250mV

Input common-mode voltage range includes GND

Output voltage compatible with TTL,MOS and CMOS logic systems

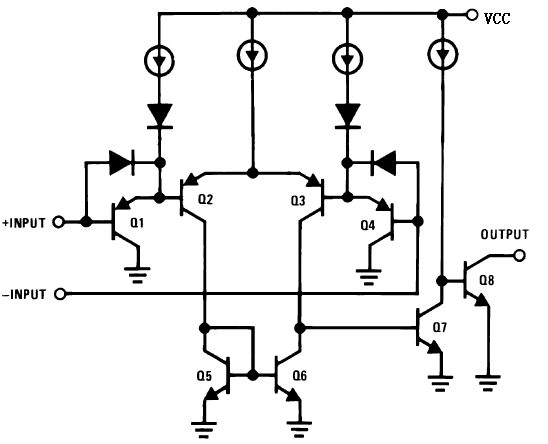

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF LM339

DIP-14

Tube

SOP-14

Tube

SOP-14

Tape & Reel
