ICF LA2284Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:8545Times

PRODUCT NAME

ICF LA2284

FUNCTIONAL DESCRIPTION

5-Dot Dual LED Level Meter Driver

APPLICATIONS

Signaal Indicator

VUM

GENERAL DESCRIPTION

The ICF LA2284 is a monolithic integrated circuit designed for 5-dot LED level meter drivers with a built-in rectifying amplifier. It is suitable for AC/DC level meters such as VU meters or signal meters.

FEATURES

High gain rectifying amplifier included (Gv=26dB)

Low radiation noise when LED turns on

Logarithmic indicator for 5-dot LED of bar type

Constant current output(15mA)

Wide operating supply voltage(3.5V ~ 16V)

Not necessary diode or transistor for ALC

Minimum number of external parts required

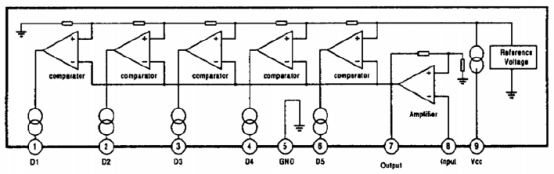

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF LA2284

SIP-9

Tube

SOP-10

Tube

SOP-10

Tape & Reel
