ICF CP069Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:7433Times

PRODUCT NAME

ICF CP069

FUNCTIONAL DESCRIPTION

Dc speed regulating circuit for power tools

APPLICATIONS

power tools

GENERAL DESCRIPTION

ICF CP069 is a special CMOS circuit for dc speed regulation of power tools. It has the characteristics of wide power supply voltage, low power consumption and strong anti-interference ability. Through the external resistance network, the output of the connected VMOS tube is changed to control the speed of electric tools. The circuit has wide output amplitude, small frequency change, variable duty cycle and large output current, and is widely used in various switches of electric tools.

FEATURES

Characteristics of wide power supply voltage

Low power consumption

Strong anti-interference ability

Wide output amplitude

Small frequency change

Variable duty cycle

High output current

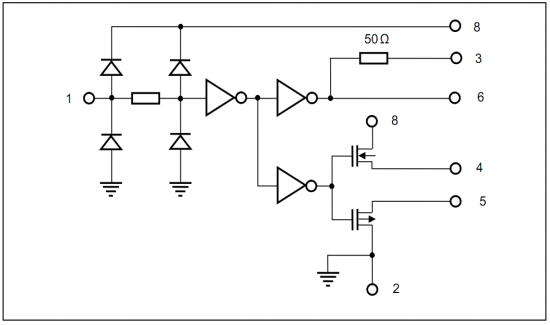

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF CP069

SOP-8

Tube

SOP-8

Tape & Reel
