ICF L79XXHangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:1819Times

PRODUCT NAME

ICF L79XX

FUNCTIONAL DESCRIPTION

3-Terminal Negative Voltage Regulator

APPLICATIONS

Logic systems

Instrumentation,

HiFi

Other solid state electronic equipment.

GENERAL DESCRIPTION

The ICF L79XX series of three-terminal negative voltage regulator are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection,making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.0A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

FEATURES

Output voltage tolerances of ±5% over the temperature range

Output current of 1A

Internal thermal overload protection

Output transistor safe area protection

Internal short circuit current limit

Output voltages of -5V, -6V, -8V, -10V, -12V, -15V, -18V

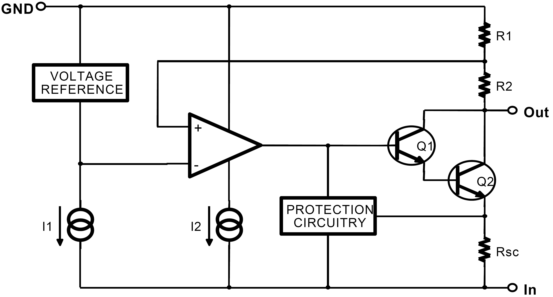

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF L7905

TO-220-3L

Tube

ICF L7906

ICF L7908

ICF L7910

ICF L7912

ICF L7915

ICF L7918
