ICF L78XXHangzhou Boon Electronics Co., Ltd. Release time：2018-12-28 Click to browse：3133Times

PRODUCT NAME

ICF L78XX

FUNCTIONAL DESCRIPTION

3-Terminal Positive Voltage Regulator

APPLICATIONS

Positive Voltage Regulator

GENERAL DESCRIPTION

The ICF L78XX each type employs internal current limiting, thermal shut down and safe operating area protection,making it essentially indestructible.

FEATURES

Output Current up to 1.5A

Output Voltages of 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V,24V

Thermal Overload Protection

Short Circuit Protection

Output Transistor Safe Operating Area Protection

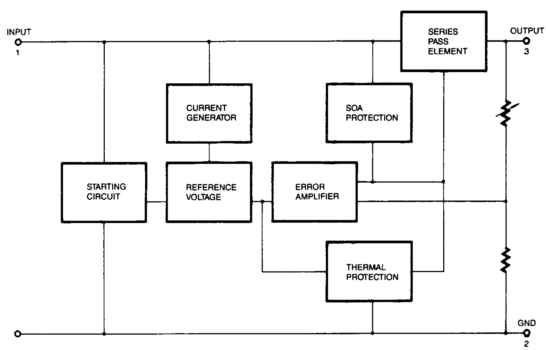

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF L7805

ICF L7806

ICF L7808

ICF L7809

ICF L7810

ICF L7812

ICF L7815

ICF L7818

ICF L7824

TO-252-2L

Tube

TO-252-2L

Tape & Reel

TO-220-3L

Tube

TO-263-2L

Tape & Reel
