ICF CP4275Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:1802Times

PRODUCT NAME

ICF CP4275

FUNCTIONAL DESCRIPTION

Low-Dropout Voltage Regulator with Reset

APPLICATIONS

Auto Body Electronics

GENERAL DESCRIPTION

The ICF CP4275 is and integrated low dropout regulator designed for use in harsh automotive environments.It includes wide operating temperature and input voltage ranges.The output is regulated at 5.0 V 3.3 V and is rated to 450mA of output current.It also provides a number of features,including overcurrent protection,overmperature protection and a programmable microprocessor reset.

FEATURES

5.0V and 3.3V,±2% Output Voltage Options

450mA Output Current

Very Low Current Consumption

Active Reset Output

Reset Low Down

Short Circuit Protection

Thermal Overload Protection

ESD Protection HBM >4kV

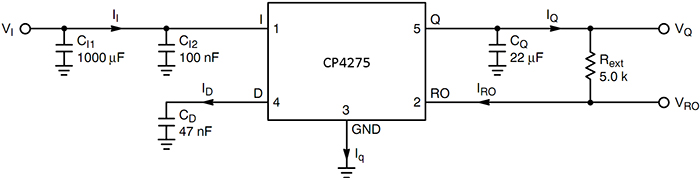

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF CP4275

TO-252-4L

Tube

TO-252-4L

Tape & Reel

TO-263-5L

Tape & Reel
