ICF CP2502Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:3068Times

RODUCT NAME

ICF CP2502

FUNCTIONAL DESCRIPTION

Ev 8 LED Charging Display Circuit

APPLICATIONS

Electric vehicle Charger

GENERAL DESCRIPTION

ICF CP2502 is electric vehicle 8 LED charging power disply circuit,it has the function of under voltage indication and charging stage indication.

FEATURES

Suitable for under voltage in 42V,full charge in 48V

Power ground reverse protection

By changing and adjusting the state of 6 and 7 feet,the under voltage point can be adjusted.

Low power consumption 1.4mA

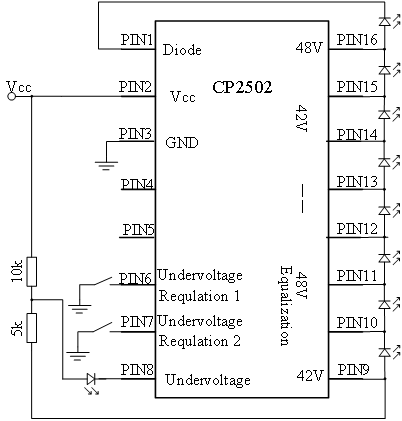

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF CP2502

DIP-16

Tube

SOP-16

Tube

SOP-16

Tape & Reel
