ICF CP2501Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:1854Times

PRODUCT NAME

ICF CP2501

FUNCTIONAL DESCRIPTION

Ev 4LED Charging Display Circuit

APPLICATIONS

Electric vehicle Charger

GENERAL DESCRIPTION

ICF CP2501 is electric vehicle 4 LED charging power display circuit,it has the function of under voltage indication and charging stage indication.

特点

Suitable for under voltage in 42V,full charge in 48V

Power ground reverse protection

Low power consumption 1mA

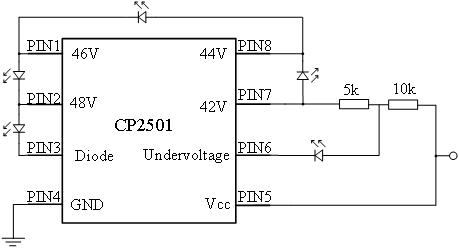

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF CP2501

DIP-8

Tube

SOP-8

Tube

SOP-8

Tape & Reel
