ICF CP1023Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:1940Times

PRODUCT NAME

ICF CP1023

FUNCTIONAL DESCRIPTION

Analog Control Circuit Of Motorcycle Electronic Igniter

APPLICATIONS

Motor Ignition Circuit

GENERAL DESCRIPTION

ICF CP1023 is the motorcycle electronic igniter Analog control special integrated circuit Consist of the processing of the trigger pulse(PC signal)generated by the magneto sensor,the integrated circuit can output a trigger pulse whose phase changes with the rotation speed to realize the control of the ignition inlet Angle,and the output pulse can trigger the thyristor conduction to make the booster transformer produce instantaneous high-voltage ignition.

FEATURES

Functional, Small volume

Few external components

High-end, low-end speed adjustable

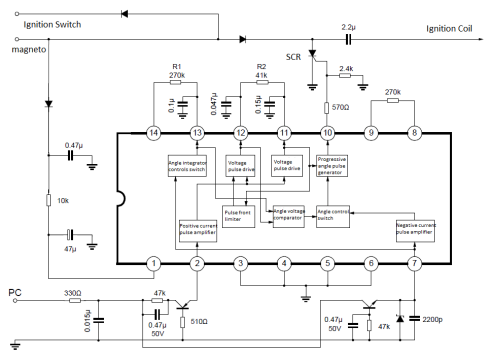

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF CP1023

DIP-14

Tube
