ICF BAK225Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-28   Click to browse:2076Times

PRODUCT NAME

ICF BAK225

FUNCTIONAL DESCRIPTION

Motor Cycle Pointer Tachometer Drive Circuit

APPLICATIONS

Car Instrument

Electric Vehicle Instrument

GENERAL DESCRIPTION

ICF BAK225 monolithic integrated circuit is a speed measuring device,mainly used for measuring the motor cycle speed supplied by 6V/12V battery.ICF BAK225 is equipped with 4.7V reference voltage regulator,and can be adjusted by 8-pin external resistance(voltage regulator value 2.6V-8.0V)to adapt to the meter head with large current required for full scale and various magneto with different output performance.

FEATURES

4.7V reference is included onboard

Can be adjusted by 8-pin external resistance

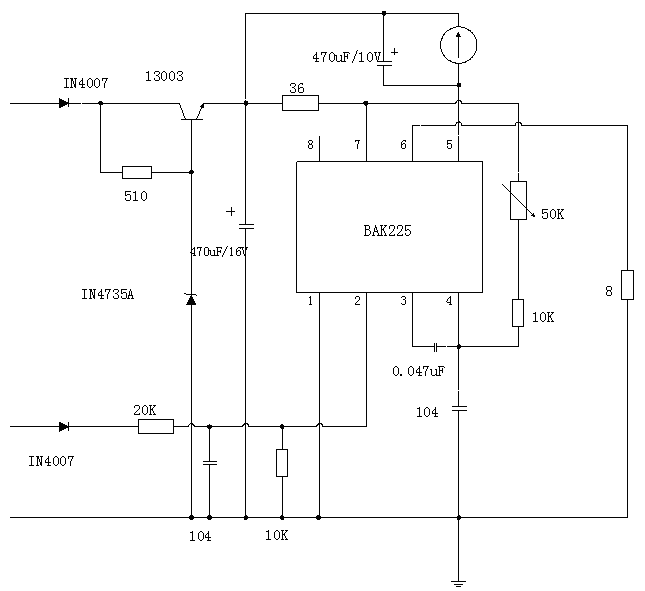

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF BAK225

DIP-8

Tube

SOP-8

Tube

SOP-8

Tape & Reel
