ICF ULN2003Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-27   Click to browse:1896Times

PRODUCT NAME

ICF ULN2003

FUNCTIONAL DESCRIPTION

Seven Darlington Arrays

APPLICATIONS

Relay drivers

Hammer drivers

Lamp drivers

Display(LED) drivers

High power buffers

GENERAL DESCRIPTION

The ICF ULN2003 is high voltage, high current darlington arrays each containing seven open collector darlington pairs with common emitters. Each channel rated at 500mA and can withstand peak currents of 600mA.Suppressiondiodesare included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.

FEATURES

Seven darlingtons per package

Output current (single output): 500 mA (max: 600 mA)

High sustaining voltage output: 50 V (min)

Output clamp diodes

Inputs compatible with various types of logic

TTL/CMOS/PMOS/DTL compatible inputs

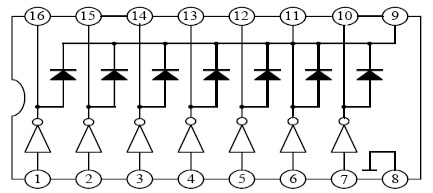

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF ULN2003

DIP-16

Tube

SOP-16

Tube

SOP-16

Tape & Reel
