ICF 74HC164Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-27   Click to browse:1829Times

PRODUCT NAME

ICF 74HC164

FUNCTIONAL DESCRIPTION

8-Bit Parallel-Out Serial Shift Registers

APPLICATIONS

Low voltage and low power storage

GENERAL DESCRIPTION

These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear(clr)input.The gated serial(A and B)inputs permit complete control over incoming data;a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock(CLK)pulse.A high-level input enables the other input,which then determines the state of the first flip-flop.Data at the serial inputs can be changed while CLK is high or low,provided the minimum setup time requirements are met.Clocking occure on the low-to-high-level transition of CLK.

FEATURES

AND-Gated(enable/disable)serial inputs

Fully Buffered clock and serial inputs

Direct clear

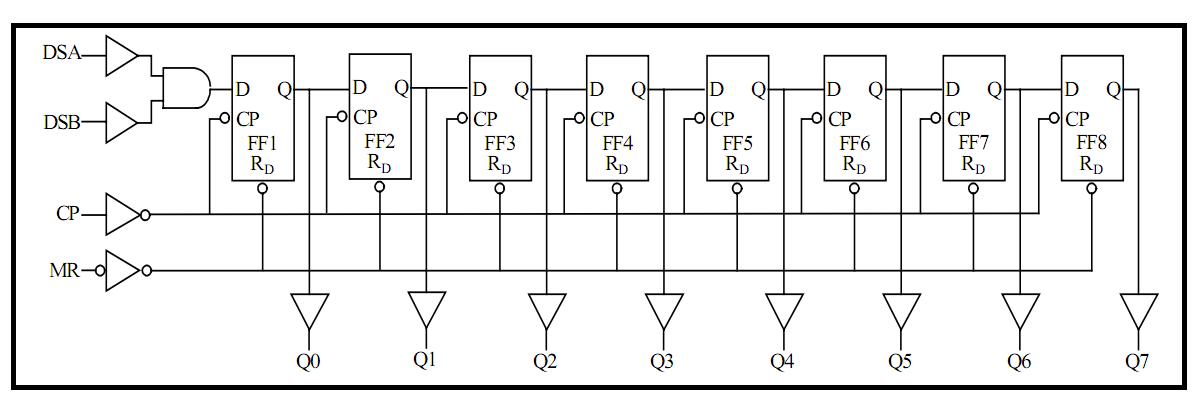

BLOCK DIAGRAM


ORDERING INFORMATION

Product model

Package type

ICF 74HC164

DIP-14

Tube

SOP-14

Tube

SOP-14

Tape & Reel
