ICF OP07Hangzhou Boon Electronics Co., Ltd. Release time:2018-12-27   Click to browse:1927Times

PRODUCT NAME

ICF OP07

FUNCTIONAL DESCRIPTION

Very Low Offset Single Bipolar Operational Amplifier

APPLICATIONS

Wireless Base Station Control Circuits

Optical Network Control Circuits ,

Instrumentation

Sensors and Controls

Precision Filters

GENERAL DESCRIPTION

The ICF OP07 is a very high precision op-amp with an offset voltage maximum of 150uV. Offering also low input current(1.8nA)and high gain(400V/mV),the ICF OP07 is particularly suitable for instrumentation applications.

特点

Extremely low offset: 150μVmax

Low input bias current:1.8nA

Low Vio drift:0.5μV/

Ultra stable with time:2μV/month最大

Wide supply voltage range:±3V to ±22V

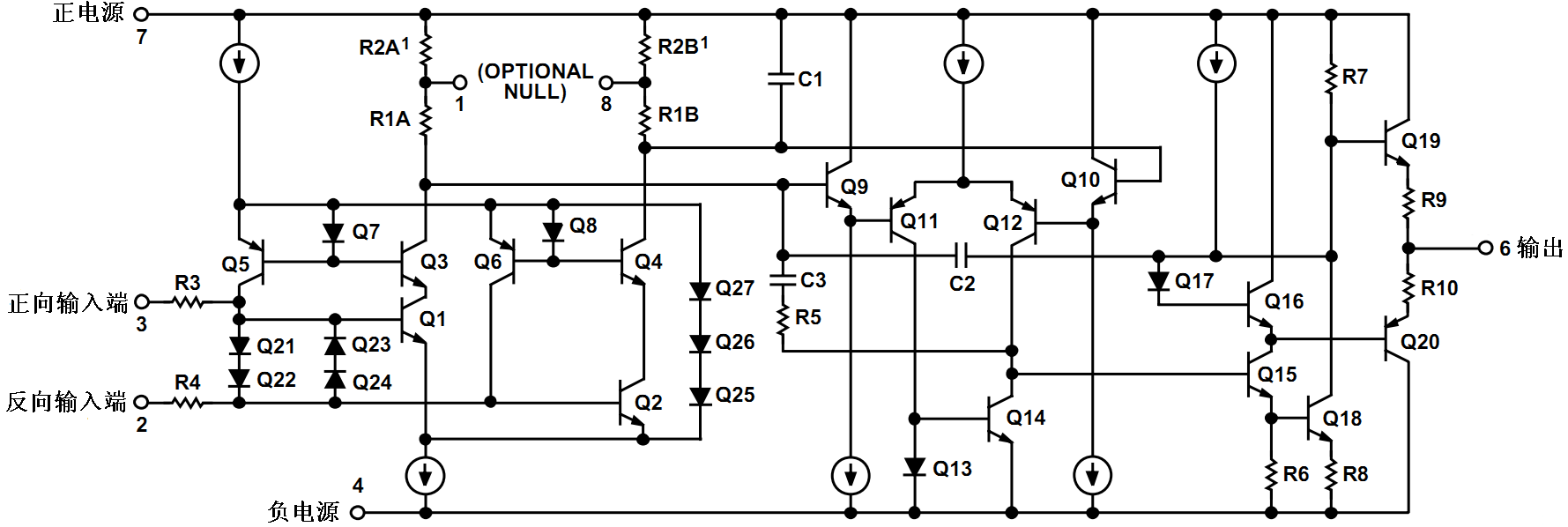

BLOCK DIAGRAM

ORDERING INFORMATION

Product model

Package type

ICF OP07

DIP-8

Tube

SOP-8

Tube

SOP-8

Tape & Reel.
